Soudal has already been known as a reputable manufacturer of high quality products for sealing and insulation in the construction world for years. Many of these products are separately certified and are already successfully used for the installation of windows and doors. Soudal combines all its know-how relating to window joints together with different installers, building promoters and architects. Soudal Window System, a professional window ‘joint sealing system’. SWS intelligently combines highly developed versions of a number of known products for sealing between joinery and brickwork. The optimal sealing of window joints means good airtightness on the inside, thermal and acoustic insulation in the middle, and excellent protection against all sorts of weather influences on the outside. In conformity with EnEV, DIN 4108-7 and the directives for a RAL assembly.
New constructions often involve a joint of ± 2 cm (also see Technical Information 214 of the BBRI (Belgian Building Research Institute)), but the system is obviously also usable for renovation and for all types of joinery: aluminium, wood and PVC. SWS also offers solutions for passive building (solid/passive).
The different products can be perfectly combined per level for any installation method. For example, the SWS Vario Extra is used on the outside, Flexifoam in the middle, while the inside is finished with Soudatight SP.
| On the cold side (BLUE) | In the middle(GREEN) | On the warm side(RED) |
|---|---|---|
| Weather protection: driving rain tightness, windproofing and vapour permeable | Thermal and acoustic insulation | Airtight and vapour barrier |
| Soudaseal 215 LM | Flexifoam | Acryrub SWS |
| Soudatight Hybrid | Soudaband Aktiv Plus | Soudatight LQ |
| SWS Vario Extra | Soudatight SP | |
| SWS Outside Tape | SWS Vario Extra | |
| Soudaband PRO BG 1 | SWS Inside Tape |
*Soudaband Aktiv Plus is a 3-in-1 product that simultaneously offers protection against weather influences, thermal and acoustic insulation and airtightness and is more vapour retarding on the inside.

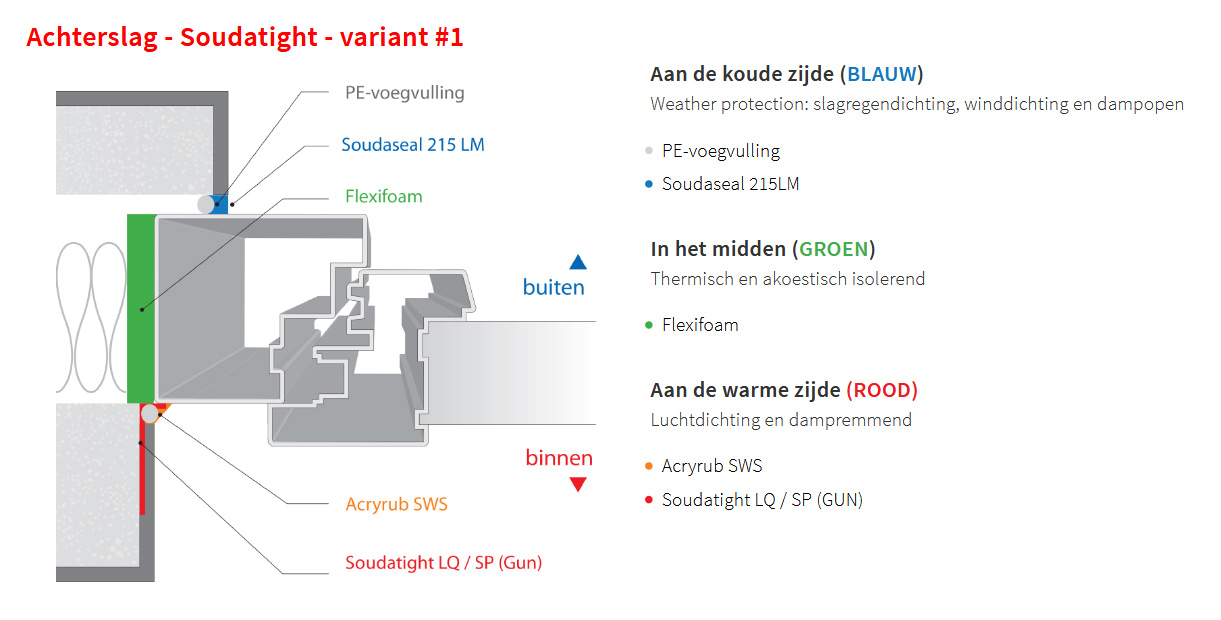

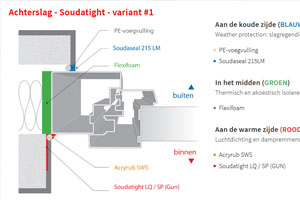

>>> Check reveal installation
>>> Tunnel installation
Weather protection: driving rain tightness, windproofing and vapour permeable
Thermal and acoustic insulation
Airtight and vapour barrier
Weather protection: driving rain tightness, windproofing and vapour permeable
Thermal and acoustic insulation
Airtight and vapour barrier
